ID # 26649704

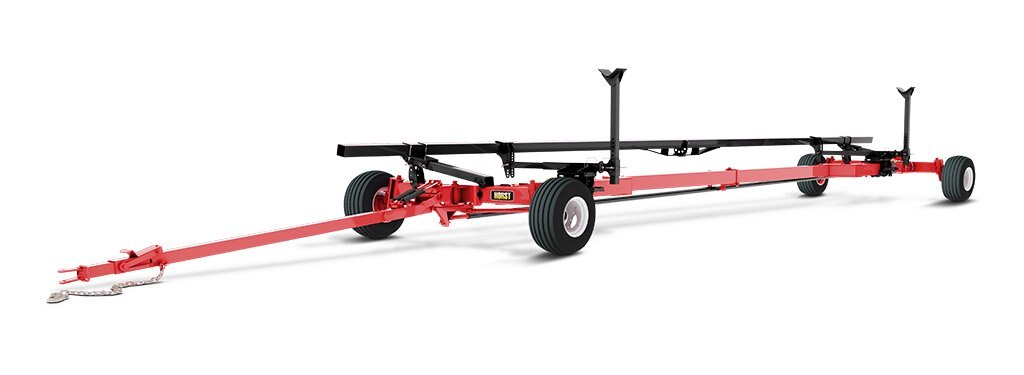

Horst Wagons SHCF45

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

Swather Draper Heads (4 Wheel Steer)

Accepts Agco, Challenger, Hesston, MacDon and Massey Ferguson brands only

Notched rail for easy header placement
Tapered roller bearings on king pins for absolute no sway trailing
Includes 2 tool free configurable swather universal mount brackets with pivoting head supports (fold out of the way during loading and unloading)
2 Ratchet straps to secure load
4 Wheel steering
Adjustable top rail
Safety chain
Double spring balancer
Length adjustable hitch with auto lock for simple hook up
20.5 x 8-10 (F Range) tire on 10 x 6 x 6 rim

Specifications

Model

SHCF45

Category Name

Agriculture

Year

2022

Sale Type

New

Manufacturer

Horst

Wheelbase

30'

Safety Chain

Standard

Approx. Weight

2,795 lbs.. (less rims and tires)

Top Rail Length

48'

Bridged Top Rail

Standard

Maximum Head Size

45'

Tongue Length (Adjustable)

11' 4" to 14' 4"

Maximum Rated Gross Capacity

6,600 lbs.

options

LK30

Road Signal Light Kit (30' wheelbase)

rim & tire sizes

Tire Size	Description	GVWR	Rim Size
20.5 x 8-10	Load Range F	6,600 lbs.	10 x 6 x 6

features

Adjustable Rail
The adjustable top rail ensures our wagons can fit most sizes and models of combine heads.

Ratchet Straps
These heavy duty ratchet straps are re-positionable to match the best possible strapping location for your head. Because they are free floating they are a snap to release.

Road Flex Suspension (Patented)
Contour Cross Country builds on the proven Contour 4 wheel steer platform by adding 4 wheel independent Road Flex suspension. This patented innovation not only smooths out bumps, it gives added clearance when turning adding even more protection for your head.

Tapered Roller Bearings
Roller bearings are used in your main pivot points keeping them tight, ensuring no trailer sway and long lasting use.

Fenders
Add even more protection for your head and tow vehicle with these optional fenders. These corrosion and dent resistant fenders prevent dirt and stones being thrown at your head and tow vehicle.

Reinforced Bottom Rail
The Reinforced bottom rail comes standard on 24ft & 30ft wheelbase standard on CHC36, CHCF, CHCFE & CHCFRF
A heavy duty bottom rail option is available for select models.

Quick Release
The quick release header mount makes repositioning the header mount easy. Simply lower the over-centre locking handles, reposition the mount and relock the mount.

Brakes
Contour Cross Country features standard four electric drum brakes, to give you more control and confidence when transporting your head from field to field. Contour CHCFE come standard with 2 rear brakes.

Horst Wagons SHCF45 Improved Steering
Horst Header Wagons feature an improved steering system that provides tighter steering when following the tow vehicle and prevents bent tongues.

Wheels
Contour Cross Country comes standard with Highway rated tires to make sure you are not trailing behind.

Horst Wagons SHCF45 Road Signal Light Kit
Make road travel safer by adding the road signal light kit which includes brake, turning and hazard lights.
The Contour Cross Country models come standard equipped with rear signal and side running lights on fenders and rails.

Tongue
Adjustable Hitch with auto lock for simple hookup.
Double spring balancer is standard equipment on all models except CHC series.
Single or double spring balancer option available for CHC series.

Call for Price

Pricing excludes licensing and tax
