ID # 26649499

Massey Ferguson MF TW 130

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Trailed Round Baler Wrapper

The MF TW 130 and MF TW 160 are easy-to-use, straightforward wrappers with a grid frame and exceptionally low wrapping table.

Specifications

Model

MF TW 130

Category Name

Hay and Forage

Year

2023

Sale Type

New

Manufacturer

Massey Ferguson

Model

MF TW 130

Control

Semi-Automatic

BALE DIAMETER (in.)

35” – 51”

APPROXIMATE WEIGHT (lbs.)

2,375

key benefits

Film Overlap

The correct film overlap is ensured by the ratio of bale rotation speed and the speed of the wrapping table. Guides on the wrapping table keep the bale firmly positioned in the center of the table.

MF TW Arms

The MF TW 130 and MF TW 160 come with a strong welded adjustable loading arm. The arm can lift bales up to 4.3 ft. in diameter (max 2200 lb.) on the MF TW 130 model and up to 5.25 ft. in diameter (max 2755 lb.) on the MF TW 160.

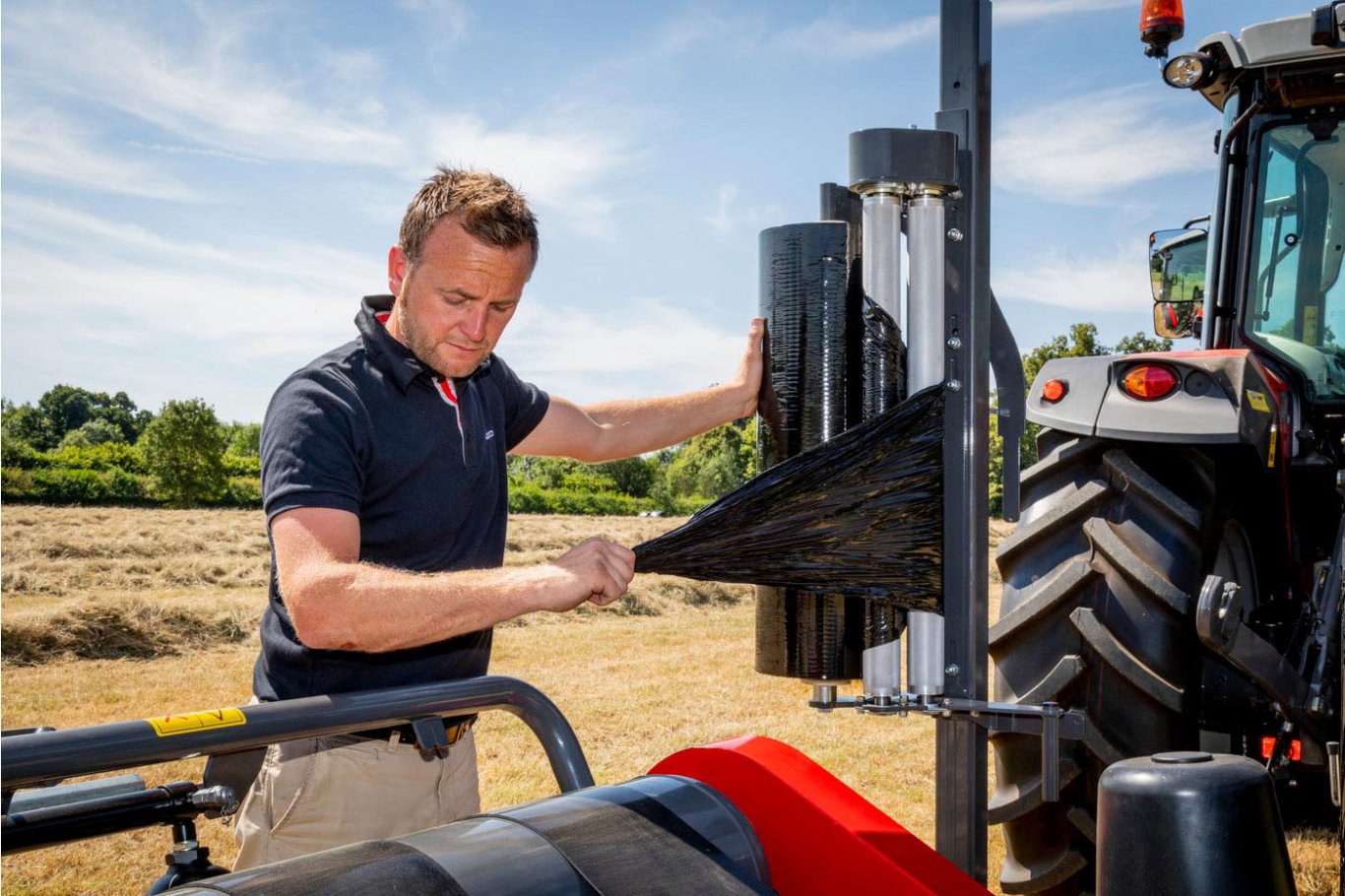

Adjustable Film Layers

The number of film layers is easily adjusted, and a pre-stretching device works with 20- or 30-inch rolls, which can be set at 55% or 70% stretch for tighter wrapping and reduced film use. Replacement of rolls is fast and easy.

Bale Discharge

Bale discharge is gentle, reducing the risk of damaging your wrapped bale or the ground. This is thanks to the low position of the wrapping table, which tilts close to the ground for unloading.

Transport

On MF TW 130 models, the right-hand side transport wheel can be turned around the center spindle, extending the overall transport width and improving stability. Both the MF TW 130 and MF TW 160 can be used to transport one or two pre-wrapped bales from the field.

performance

Transport Wheel

On the MF TW 130 the right-hand side transport wheel can be turned around the center spindle, extending the overall transport and increasing the overall wrapper stability.

Welded Loading Arm

MF TW 130 and MF TW 160 come with a strong welded loading arm that can be adjusted between 3 and 5.25 ft. The arm can lift bales up to 4.3 ft. in diameter (max 2200 lb.) for the MF TW 130 and up to 5.25 ft. in diameter (max 2755 lb.) for the MF TW 160.

Transport Pre-Wrapped Bales

MF TW 130 and MF TW 160 wrappers can be used to transport one or two pre-wrapped bales from the field

efficiency

Bale Discharge System

The MF TW 160 features a width-adjustable active bale discharge system. When the bale is tipped off the wrapping table, the discharge table lifts to catch the bale and gently lowers it to the ground.

Gentle Bale Discharge

Bale discharge doesn’t risk damaging the wrapped bale or the ground thanks to a low-positioned wrapping table, which tilts close to the ground when unloading bales.

Optional Bale Tipper

An optional baler tipper is available to prevent the bales from rolling in hilly conditions and reducing the time required for transport/loading and bale collections.

farm management

E-Link Plus

The MF TW 160 is equipped with the “E-Link Plus” control box. This easy-to-use system allows semi-automatic or fully automatic control of the wrapper. The complete process from loading through to discharge is controlled with minimum effort.

MF TW 130 Controls

The MF TW 130 is equipped with very simple semi-automatic controls, for fast and reliable trouble-free operation.

Documents

A-A-16824_MF_TW-130_160_Wrapper_English_DV3_2019_UB.pdf
