Bauma Light KR 52

Videos
Call for Price
Overview

KR Series PTO Generators

Our newest addition to our line of PTO generators, the KR series generators are designed to fit tractors from 45 to 97 horsepower and support power requirements from 30 kilowatts to 65 kilowatts. The KR model's generator assembly is made in Canada and the main components are made in Europe. When the unexpected happens, you can rely on the trusted combination of your tractor and your KR generator to get you back up and running. With one less engine to maintain, a PTO generator is an effective, reliable backup power source for your smaller appliances and large equipment motors on your farm. The KR series is a 4-pole copper winding generator that features a brushless design for less maintenance, automatic voltage regulation and DisplayMaster1, Baumalight's own at a glance performance monitor.

Specifications
Model
KR 52
Category Name
Generators
Year
2023
Sale Type
New
Manufacturer
Bauma Light
KW
52
Phase
1
Volts
120/240
Connection
Dedicated
50% Load (HP)
39
100% Load (HP)
76
120v 20amp Duplex
2
Momentary Surge KW
140
Ship Weight (lbs.)
1,060
Full Output Amps (Main Breaker)
225
Welder Receipt Voltage (50 Amp)
240
features

Bauma Light KR 52 EASY SET-UP

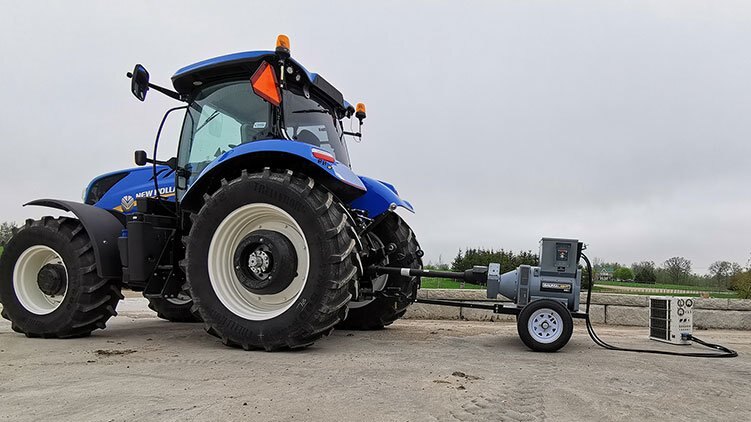

Pairing your PTO generator with your tractor’s powerful engine and converting that power into electricity gives you a convenient and reliable back-up and remote power solution for your property – simply by using your tractor. Before setting your PTO speed, ensure that the PTO driveline is perpendicular with the generator transmission. If necessary, remove the bolt and adjust the trailer tongue. This will help the shaft to stay straight with no bend in the universal joint on the generator side while ensuring a more consistent PTO speed and helping with vibration.



Bauma Light KR 52 SOURCE FOR POWER

KR PTO generators provide convenient and reliable back-up and remote power for your property – simply by using your tractor. All KR PTO generators come with a full-load main outlet, along with a higher-than-average number of plug-in options – giving you several different ways to use your generator.

KR PTO Generator connection panels feature full load connectors with a lockable cover and multiple receptacles with overload protection for safe, simple operation.

Bauma Light KR 52 KR PERFORMANCE

Designed to meet the needs of your operation, the KR PTO generators are built for 24 Hr. 7 day a week dependability. The heavy-duty genset features a cast-iron body with four oversized copper windings for more efficient power generation. Integrated cooling fans allow for venting at the front and back of the genset.

Bauma Light KR 52 DISPLAYMASTER1

Designed exclusively for Baumalight KR PTO generators, the DisplayMaster1 is your guide for quick, easy setup and an "at a glance" monitor of key performance factors. The intuitive three light system gives instant feedback whether over or under speed. The DisplayMaster1 screen also shows the generator’s voltage, frequency and amperage; KW, KVA and Power Factor; runtime and KW hours; and peak/average KVA.

Bauma Light KR 52 Reset circuit breakers

With Baumalight’s Reset Circuit Breakers, you can protect your PTO generator against short-circuit damage without the worry of blown fuses. When your PTO generator experiences a power surge, simply reset the breaker and restart the generator.

Bauma Light KR 52 BRUSHLESS DESIGN

For improved and reliable performance, the brushless design on your KR PTO tractor-driven generator provides efficient operation with the same power output as conventional brushes, but which are lighter, less noisy and require less maintenance over time without the added risk of sparks.

Bauma Light KR 52 4 OVERSIZED COPPER WINDINGS

Baumalight KR PTO generators run on four oversized copper windings, reducing the RPM of the unit and increasing the quality and stability of the power – giving you nearly three times the momentary surge capacity over their rated power.

Bauma Light KR 52 INTERNAL SPEED AT LOAD

The durable KR gear box turns the tractor’s PTO RPM into 1,800 RPM internally. This lower operating speed increases duty cycle and operating life and means less friction, heat, and wear over a longer period of time, ensuring a longer life for your generator.

Bauma Light KR 52 SPEED INDICATING LIGHTS

Getting the power up and running is a simple task with the intuitive three light system. The bright LEDs give instant feedback whether over or under speed. Once the optimal PTO speed is reached, the green light is lit and you are ready to go.

Bauma Light KR 52 AUTOMATIC VOLTAGE REGULATION

Our automatic voltage regulation keeps power stable within 1% plus or minus from 64 down to 56 Hz, allowing for near constant voltage in the case of an unexpected load variation. This protects your generator from harm and provides a superior quality of power regardless of your property’s varying power requirements.

Bauma Light KR 52 HIGH MOMENTARY SURGE

The KR PTO tractor generator offers high momentary surge capacity up to three times over their rated power. If there is a sudden change of load, the AVR will automatically stabilize the voltage to a near constant level, eliminating problems created by under-voltage or over-voltage fluctuations, as well as offering protection against minor and major spikes and surges.

Bauma Light KR 52 FULL LOAD CONNECTOR

The KR PTO Generator connection panel features full load connectors and multiple receptacles with overload protection for safe and simple operation. The full load connector also features a lockable cover for additional safety measures.

Bauma Light KR 52 20 AMP DUPLEX RECEPTACLE

The KR PTO generators feature 2 x 20 amp duplex receptacle for additional versatility on your property when you need to run multiple pieces of equipment during a power outage.

Bauma Light KR 52 50 AMP WELDER RECEPTACLE

Some KR generator models come with a 50 amp welder receptacle, allowing you to transport your portable KR PTO generator and plug it into a welder for remote repairs on your farm equipment.

Bauma Light KR 52 DRIP PROOF DESIGN

The drip-proof design features ventilation on the sides of the PTO generator, allowing air to circulate through the generator but prevents drops of liquid from falling inside.




customer submitted media

Down below are photos and video footage taken by Baumalight product owners. Visit our Factory Discount web page to learn how you too can participate in this media discount program.

 Testing for certification at factory

Bauma Light KR 52                                             Bauma Light KR 52                                                            Bauma Light KR 52
