Bauma Light 3P40

Videos
Call for Price
Overview

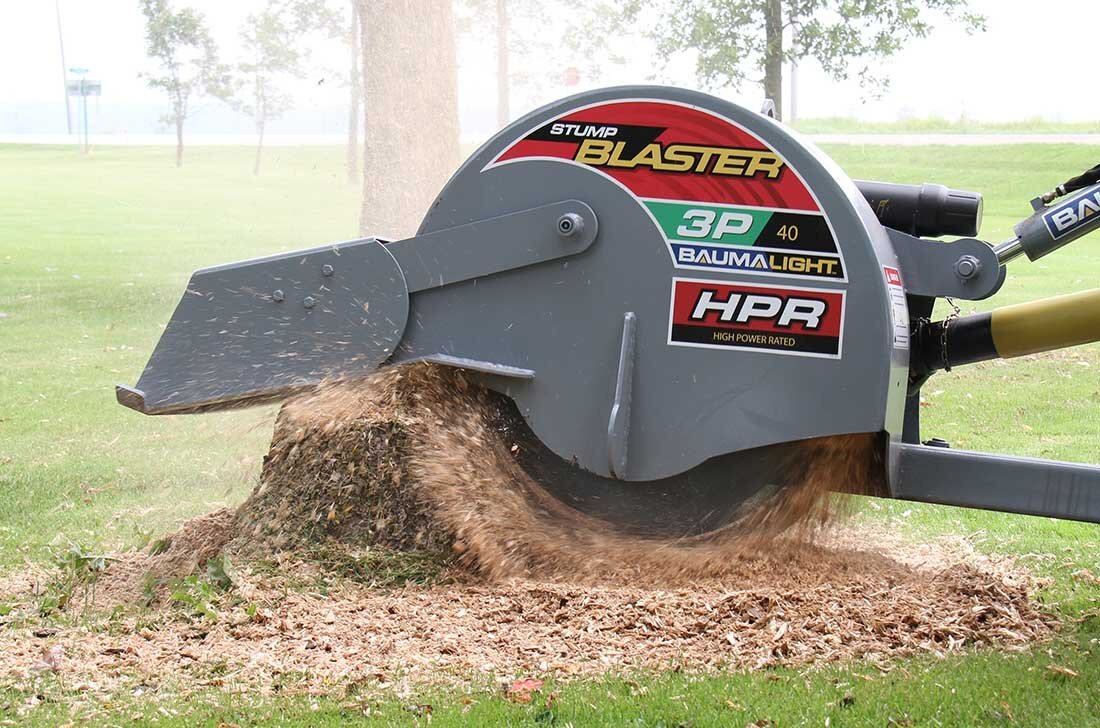

3 Point Hitch Stump Grinder - 3P40

The 3P40 HPR PTO stump grinder is designed with high performance in mind, for tractors equipped with a 60–120 HP and 1,000 RPM PTO. This stump grinder will devour large tree stumps with its 54 replaceable carbide teeth and a 34" rotor. Massive rotor and more teeth with a heavy duty HPR gear box make this Baumalight’s most powerful PTO model. This Stump Blaster has the ability to grind a 24" stump in a few minutes with a cutting depth of 25" above ground and 14" below ground. With direct drive from the engine, all the way through the heavy duty gear box to the teeth, a stump grinder on the PTO of a tractor is the most efficient way to use a stump grinder for lawn care or fence row clearing.

Specifications
Model
3P40
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Bauma Light
Hitch
Cat II
Hub Torque
1050 Ft.-Lbs.
Rotor Size
34"
Swing Arc
65°
Transmission
Any
Hydraulic GPM
5–20
Maximum PTO HP
115
Number Of Teeth
54
Maximum Engine HP
125
Cutting Wheel Speed
1000 RPM
Recommended HP Size
60-120
Tooth Part Number
S1000
Tooth Construction
Carbide steel bolt-in
Maximum Horizontal Cut
32"
Over Torque Protection
Slip clutch
Cutting Depth - Below Ground
14"
Cutting Height - Above Ground
25"
Maximum Cutting Depth - Per Pass
9"
features


https://baumalight.com/stump-grinder/img/features/local-support.jpg SOLD BY EQUIPMENT DEALERS

All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership

QC Generators outlets

External Control (Optional)

This optional control is mounted on an adjustable arm. The control is great for smaller tractors with limited HP for better cutting control and for tractors with only one remote.

Note: Cost to add in the field is great then if order with unit from factory as there is extra freight and a completely new hose set will be required.

QC Generators outlets

Flow Control

Fine tune the performance of your Stump Blaster easily with the Flow Control knob. The Flow Control allows you to adjust the cutting pass speed, to match the size and performance of your tractor. This gives you the smoothest cut possible and with the full return back to the start position, the quickest overall stump grinding time possible.



QC Generators outlets

Carbide Tipped

Like the finest saw blades, the cutting teeth on Stump Blasters are carbide tipped. This incredibly hard material ensures reliable cutting performance. When grinding stumps, buried hazards are inevitable; gravel, stones even metal posts are not uncommon to “find”. Our carbide teeth are designed to stand up to this abuse and keep on blasting stumps to dust.

Bauma Light 3P40 6 FREE TEETH

All 3P40 Stump Grinder comes with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

QC Generators outlets

More Teeth

Many hands make light work, or in this case fine mulch faster and easier. The high number of teeth means that each tooth does less work. Each of the Stump Blasters teeth only need to make a small cut, because the work is shared by more of these rugged teeth, which last longer and typically only need 2 or 3 replaced at a time. The bolt-on designed teeth allow for straightforward replacement.



Bauma Light 3P40 Gearbox

The rugged gear box transfers power from the tractor’s PTO to the rotor creating 803 Ft.-Lbs of torque and turning the rotor and hungry teeth at 810 RPM.

QC Generators outlets

Rotor

The massive ¾" thick steel rotor provides the back bone for the Stump Blaster cutting system. It’s the anchor for the carbide tipped teeth. For smooth operation it’s important that the rotor remains solid, with no flexing. The rugged rotor also provides the Stump Blaster with the extra momentum needed when the grinding is tough, making sure the Stump Blaster can power through the hardest stumps.

QC Generators outlets

More Clearance

The Stump Blaster’s carbide teeth extend a full 1-¼ inches from the rotor. This prevents chips and mulch from getting plugged. More chip clearing produces smoother operation and reduces heat build-up that can damage the rotor and cause premature tooth failure.

QC Generators outlets Stabilizer Base

The heavy duty base provides a solid base for grinding. This allows for more consistent grinding performance and reduces the stress on your tractor.

Bauma Light 3P40 Floating Deflector

The deflector floats as you grind providing chip and debris control from first cut to maximum depth without getting in the way. In tight grinding situations the deflector can be flipped up out of the way.

Bauma Light 3P40 HARDENED STEEL BUSHING

Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.

Bauma Light 3P40 Greaseable Pins

Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

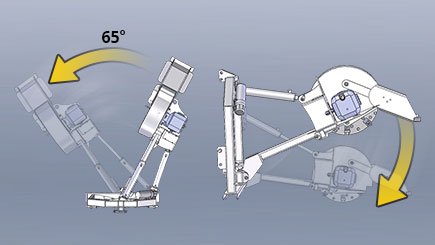

Bauma Light 3P40 Swing & Lift Cylinders

Get right to grinding with less maneuvering of your tractor and less damage to the grass. The swing cylinder gives the operator a 65 degree grinding range without moving the tractor. The lift cylinder allows you to raise and lower the grinding head to get in start position as well as lowering the head after a pass so you’re ready for the next bite.
