ID # 26649265

Bauma Light CXC542

Call for Price

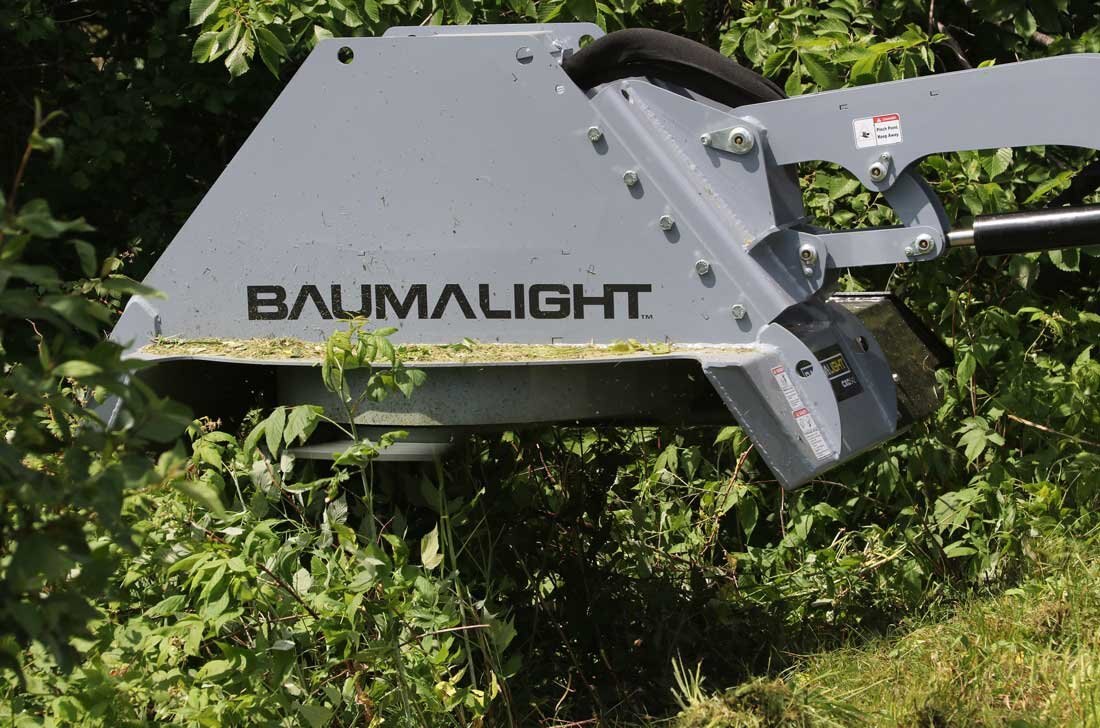

CXC542 Excavator Rotary Brush Cutter

The 42" Industrial excavator mounted Rotary Brush Cutter CXC542 model is offered for mid-range excavators. Built much like the CXC550, the same bearing support is used with only the frame and rotor smaller for less weight to go on smaller excavators.
We offer multiple motors to exact match your flow so be sure to checkout the motor options area of the page below to maximize your work as you clear land with your excavator.

Sale Type
Bauma Light
Case Drain
Maximum HP
Check Flow & PSI on Carrier
Path Width
Unit Weight
640 lbs
Cutting Width
Deck Structure
1/4" AR400 steel
Recommended GPM
Check Motor Options Chart
Number Of Blades
Low Cutting Height
Max Carrier Weight
15 ton
Maximum Brush Size
Min Carrier Weight
2 ton
Slashes Per Second
Available Motor Options
HX530, HX550, HX570
Baumalight Connection Code

https://baumalight.com/cutters/img/features/local-support.jpg SOLD BY EQUIPMENT DEALERS

All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership

QC Generators outlets

Three Cuts per Pass

As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary Brush Cutter advances forward. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 75–100 slashes per second with devastating results. The Rotary Brush Cutter’s reversible/replaceable blades are made of long lasting 1/2" AR 400 steel.

Bauma Light CXC542

Large Bearing Support

Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system.

Bauma Light CXC542

Blade Mount

To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins.

Bauma Light CXC542

3-Way Model

Designed for easy service, the 3-Way models feature a heavy duty rotor with 3 fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing 75–100 slashes per second.

Bauma Light CXC542

Deck Strength

Taking back your property can be a rough job. We designed and built the deck as a solid platform to take on the task. Built from rugged 1/4 inch steel and then further reinforced with support channels it’s a solid base of operations.

Bauma Light CXC542

Bent Axis Piston Motor

Our industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for your brush clearing needs.

Bauma Light CXC542


Using a 1" top plate and a 1" bottom plate this heavy-duty rotor sandwiches the three–way blade assembly in place.


https://baumalight.com/cutters/img/features/excavator/cxc542/Free-blade-set.jpg FREE BLADE SET

All CXC542 Rotary Brush Cutter come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping skid.

QC Generators outlets Available on Pack Wing PTO Power Packs

All Excavator Brush Cutt models are available with Baumalight’s Pack Wing PTO power packs for more carrier versatility.


customer submitted media
 Down below are photos and video footage taken by Baumalight product owners. Visit our Factory Discount web page to learn how you too can participate in this media discount program.


CXC542 set up on a 50G excavator at a dealer in Ontario,Canada

 Bauma Light CXC542Equipment on display at a Dealer Open House in Ontario
